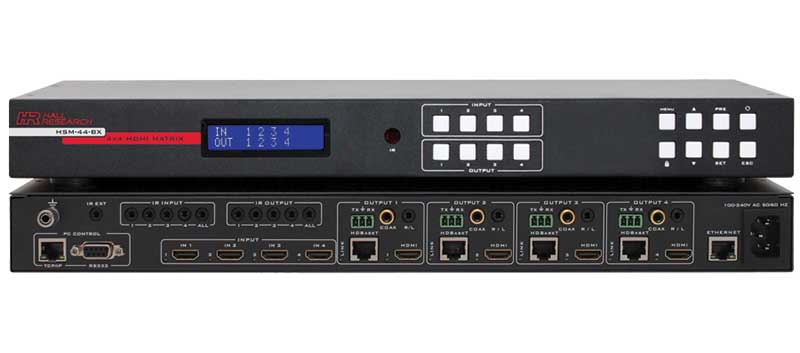

The HSM-44-BX 4K matrix is a 4×4 cross-point switch in a 1-RU enclosure. Each output has an integrated video splitter for simultaneous HDMI and HDBaseT outputs. The HDBaseT outputs extend HDMI, IR, RS-232, Ethernet, and Power over a single CAT6 cable to 100m (328 ft.) and are compatible with compliant HDBaseT receivers like Hall Research’s HBX-R. The unit supports 4K/UHD resolution with HDCP 2.2 and 1.4 and EDID Management. Front panel Control, RS-232, IP, IR and Status LCD Display. Users are able to save and recall multiple matrix routing configuration PRESETs. HDMI outputs can also be blanked. The matrix includes a two-line character LCD on its front panel in order to display the current video routing and to facilitate creating or recalling Presets. The HSM-44-BX matrix is ideal for conference rooms, multimedia presentations, digital signage, houses of worship, and many other environments.
www.hallresearch.com/page/Products/HSM-44-BX
Hall Research Technologies
